Spatial Audio Designer
High-performance professional audio plug-in
The Spatial Audio Designer (SAD) is the market’s leading audio plug-in for creating and monitoring next-generation immersive audio.
| 1.349 | Film Stage (4 Producer Plus licenses) Complete mix & binaural engine, 330 discrete outs, 8 seats |
| 389 | Producer Plus (3 plug-ins: Send, Mix, Channel Out) Complete mix & binaural engine, 330 discrete outs, 2 seats |
| 289 | Producer (3 plug-ins: Send, Mix, Channel Out) Complete mix & binaural engine, 8 discrete outs, 2 seats |
| 189 | Virtual Producer (2 plug-ins: Send, Mix) Complete mix & binaural engine, binaural out, 2 seats |
Using an advanced virtual bus system, the SAD allows for the mixing and monitoring of any immersive format in all digital audio workstations (DAWs) and many video workstations.
Formats like 5.1, 7.1, Dolby Atmos 7.1.2 to 9.1.6, AURO-3D, MPEG-H, IMAX 3D and 22.2 are just a mouse-click away with the SAD. Use it to create and export multi-format mixes for custom configurations such as those in planetariums or other installations.
In addition, you’ll see that the SAD can use existing panning and volume automation data. This means that existing multi-channel 5.1 mix sessions are just minutes away from a discrete 7.1 mix – and then of evolving to a 3D audio mix for home, cinema, 360/VR or mobile entertainment applications.
The SAD is also the only tool in the market for authoring, mixing, monitoring, exporting and encoding all MPEG-H formats, including those compatible with Sony 360 Reality Audio.
The binaural virtual loudspeaker processing capabilites of the SAD is based on real studio measurements as well as unechoed chambers and allows for any type of format to be mixed with just regular headphones if no appropriate loudspeaker system is available.
The SAD is also the perfect tool for the straightforward production of breathtaking binaural audio mixes.
The In-One version is a plug-in geared towards monitoring needs, giving users the binaural headphone virtualization capabilities required for these purposes instantly. If you want to create rather than simply monitor, you’ll likely want to have a Virtual Producer or more expansive licenses, as the SAD In-One Plug-in does not support MPEG-H creation.
Key features
- 100% object-base processing
Create a mix in one certain environment and play it back instantly in the environment of your choice on-site and binaural.
- Unlimited inputs
Your DAW can work with hundreds of objects/track channels easily. The objects can be from either a mono, stereo or 7.1 source.
- Up to 330 outputs
A discrete 5.1 output is as easy as 7.1.4 for MPEG-H and Dolby Atmos or 64.0 for a full-dome environment.
- Object-based export
Following the general export of your production, any format can be rendered discretely using the separate SAD Offline Export Tool.
- OSC control
All input objects and outputs can be controlled using OSC.
- GUI adjustment
Customize the interface with just a few clicks and work with the panning grid in either box or sphere style.
- MPEG-H & SONY 360 RA creation
Using Fraunhofers technology, both formats are provided in approved workflows and quality.
- Output monitoring
Any output format can be monitored and calibrated with gain, mute, and solo functions discretely and in individually selected groups.

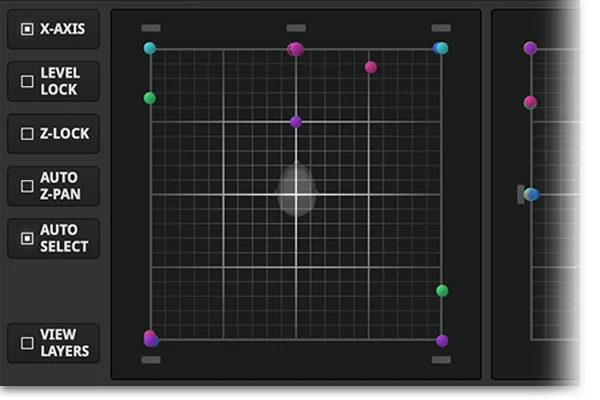

Film Style Box Panning
Straightforward box panning for film and video productions as the main formats like MPEG-H, Dolby Atmos, AURO-3D, and 22.2 demand.
VR Style Sphere Panning
Advanced sphere panning for dome and VR / 360 productions as well as for Sony 360 RA and MPEG-H object panning.
Flexible and Scalable Interface
Depending on production workflows and stages, the SAD provides different interface scales and configurations by a click.
Binaural Processing
Flexible and individual binaural processing for music, film, VR/360, full domes, standard surround, and immersive productions with every regular set of headphones in the market.
Output Monitoring
Flexible and format-independent monitoring of output channels, discretely and in groups with gain, mute, and solo.
Applications
System Requirements
Macintosh
Intel Mac PC with 2 GHz Dual2Core Processor or better, M1 (Rosetta)
Mac OS X 10.13 – 11.+
2GB min., 4GB or more suggested.
64 Bit Host Application
Windows
Intel PC with 2 GHz Dual2Core processor or better
Windows 7/64 bit – 11
2GB min., 4GB or more suggested.
64 Bit Host Application
Interface
AAX, AU, VST 2&3
